Residential Grade 701SAR
Disk Series- Spark Arresting Silencers

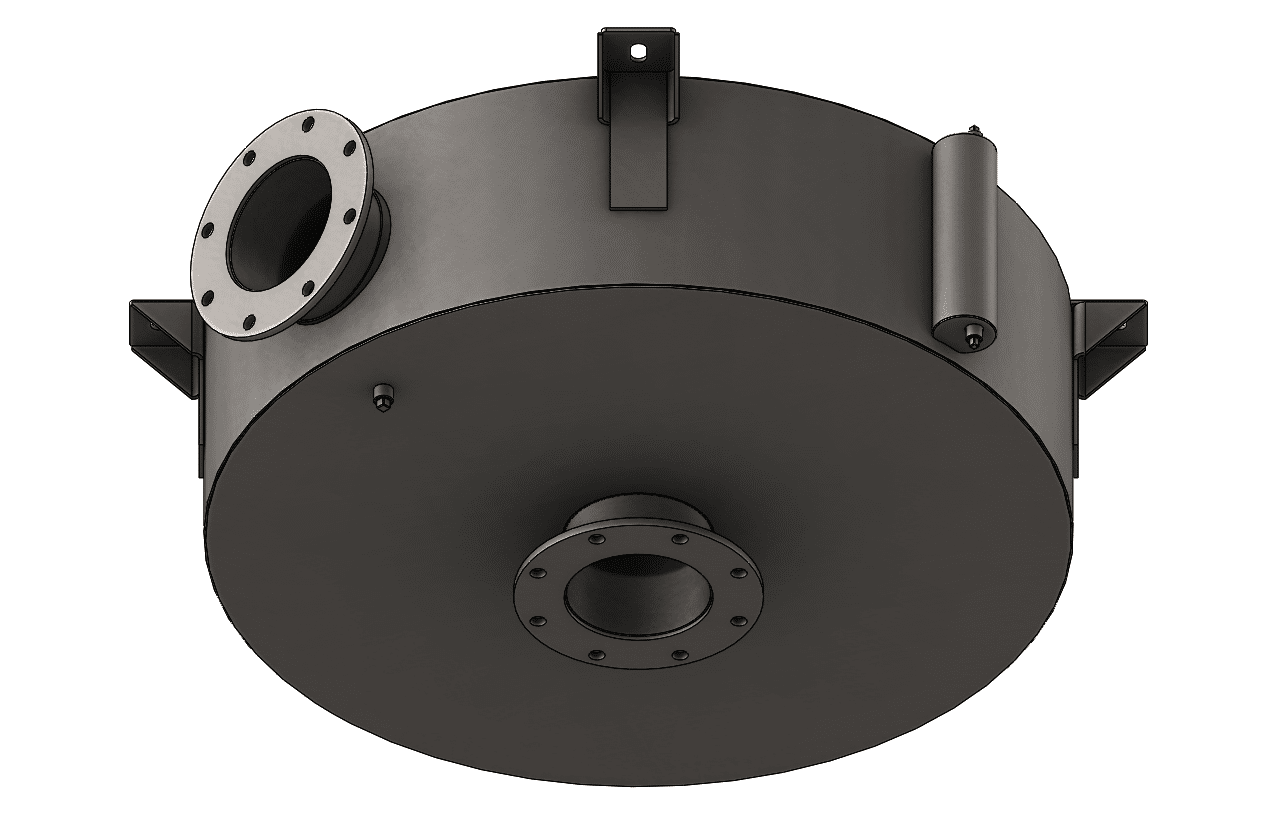

701SAR-16
| Part # | A Outlet | Order Now! |
|---|---|---|
| 701SAR-16 | 16 |
Standard Connections
125/150# ANSI Pattern flanged inlet and outlet. Side inlet, end outlet. (Style 2)
Flush Mount Option
Flush mount inlet good for applications where space is extremely limited.
Other Options
Flanged connections can be replaced with ID cuff, OD tube, NPT, etc.
- Mounting brackets can be removed or top mounted.
- Leak testing – per request, fee applicable.
- Stainless steel.
- A spark arresting disk silencer ideal for applications in which overall height is critical and/or low radiated heat is necessary.
- For use on the exhaust of internal combustion engines where fire hazards exist.
- Designed to utilize centrifugal force to separate solids from the exhaust gas stream and deposited in an easily accessible clean-out.
- 1” thick packed shell design provides significant reduction of outer surface temperature. Actual values depend on exhaust temperature, ambient conditions, and run time.
- Typical Attenuation: 19-25 dBA
- Features compressed thermal/acoustical fiberglass packed shell.
- High heat black finish.
- Bottom mounting brackets.
- Fully-welded, heavy-duty carbon steel.
