Already Know Your Part Number?

Critical Grade

Schema	Available Options
Family/Series	Slim (600s), Disk (700s), Compact (800s), Cylindrical (900s)
Inlets	0 (Single Inlet), 2 (Dual Inlets)
Packing	0 (No Packing), 1 (1" Packing), 2 (2" Packing)
Sub-Family	SA (Spark Arresting)
Grade	R (Residential), C (Critical), H (Hospital), E (Extreme)
Style	1 (End-in/End Out), 2 (Side in/End Out), 3 (Side in/Side out)
Nominal Size	Size in inches. (example: 04 equals 4 inches)
Brackets	N (No Brackets), T (Top Brackets), B (Bottom Brackets)

Abbreviations	Description
OAL	Overall Length
Dims	Dimensions
WT	Weight
DIA	Diameter

Get A Quote

"*" indicates required fields

First Name*

Last Name*

Email*

Phone*

Company*

Product*

State*

Country*

Critical Grade 900C

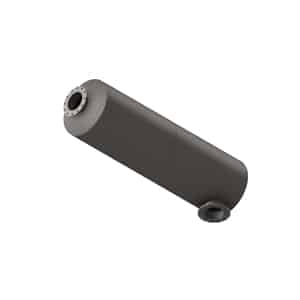

900C2-02-OUTLINE

Part #	A Outlet	C OAL C Overall Length	D OAL D Overall Length	E Oal E Overall Length	F Min	F Max	G Min	HJ Dims HJ Dimensions	WT Weight	B Dia	G Max	Order Now
900C2-02	2	31	28	25	4	11	4	7	35	8	9
900C2-025	2.5	41	38	35	4	16	4	7	48	8	12
900C2-03	3	41	38	35	5	16	5	8	60	10	13
900C2-035	3.5	52	49	46	5	22	5	8	80	10	17
900C2-04	4	53	50	47	6	22	6	10	105	14	17
900C2-05	5	61	57	54	7	25	7	12	140	16	19
900C2-06	6	73	69	66	8	31	8	13	205	18	23
900C2-08	8	75	71	67	10	29	10	16	310	24	24
900C2-10	10	100	96	92	11	46	11	17	450	26	30
900C2-12	12	100	96	92	12	43	12	19	610	30	32
900C2-14	14	138	134	131	15	58	15	22	1,030	36	47
900C2-16	16	139	135	132	16	56	16	25	1,350	42	51
900C2-18	18	143	139	134	19	56	19	29	1,630	48	49
900C2-20	20	166	162	158	20	67	20	29	1,910	48	55
900C2-22	22	168	164	161	22	67	22	32	2,200	54	60
900C2-24	24	170	167	163	24	68	24	35	2,875	60	59
